Product Description

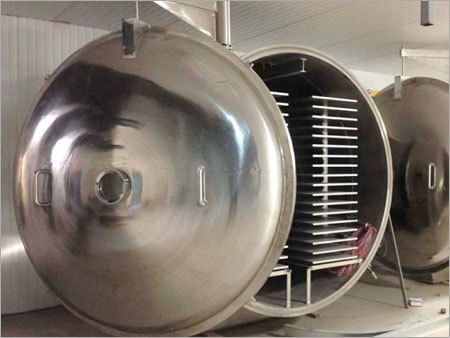

1500kg Batch Freeze Dryer
Technical parameters of freeze dryer :
| Model | EBT-1500 |
| Type | Radiant type with individual quick freezer |
| Ice Capacity (kg) | 1500kg in a 24hr period (vapor condenser capacity) |
| Vapor Condenser Temperature (℃) | -45℃ (option: -60℃) |
| Usable Shelf Area (m2) | 150.96 m2 |
| Number of Shelves | 17+1, the top plate provides radiant heat only |
| Shelf Dimension (mm) | 7400*(600*2)mm (thickness: 15mm) aluminum |
| Shelf Spacing (mm) | 60-80mm |
| Shelf Temperature (℃) | Room temperature to 110℃(max.) |
| IQF Cooling Rate (+40℃ to –25℃) | ≤ 60 minutes |
| Shelf Heating Rate (℃/min) (approx.) | 1℃/min, By electricity or steam |
| Heating/cooling medium | Silicone oil or mixing liquid |
| Heating/cooling exchange | By plate type of heat exchanger |
| Number of Product Trays | 340 pieces |
| Tray Dimension (mm) | 600*740mm (height: 25mm) aluminum |
| Ultimate vacuum level (Pa) | 15 Pa |
| Chamber vacuum rate (atm to 100 Pa) | ≤ 25 minutes |
| Refrigeration | Brand option: Hanbell, Refcomb, Frascold, Bitzer. |
| Refrigerant | R404A/R507 |
| Cooling way | By water cooling or air cooling as option |
| Cooling water flow rate | 150-170t/hr,<28℃ |
| Vacuum system | Standard Yihua, Yoivac, Option: Ulvac/Edwards |
| Energy consumption (24hr) | 3.27kWh/kg by water cooling |
| Power requirement | 253.1kw, 110-240V single, 240-480V, 3P, 50/60Hz |
| Defrost way | By water or 60°C hot water |
| Control system | PLC with HMI |
| Installation area (m2) | 300 m2 |
| Chamber – over all dimension | 15500*2560*3200mm (L*W*H), SUS304 |
| Weight (kg) | 22000kg |
