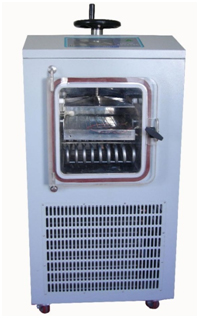

Small shelf-type lab freezedryer model EBT 10F (-50 deg.C condenser with shelf)
Main Features :
- Pre-freezing and drying process are both finished on shelf
- With electric heating function, with programmable function,and PID control standard
- 32 groups of program can be stored, and each program can be set up 36 segments
- Color LCD touch screen, display freeze drying curves
- Inner wall of drying chamber, condenser ,shelf, trays are of stainless steel 304
- Model :LGJ-10F, Standard type
- Freeze-drying area : 0.2 ㎡
- Condenser ice capture capacity : 3 kg/24 hours
- Condenser temperature: Min.-50℃
- Final vacuum degree: < 10 Pa
- Bulk Capacity：2 Liter (10 mm thickness)
- Shelf size:265x400x25mm, 2 layers
- Tray size : 260x395x25mm , stainless steel 304
- Shelf temperature : -50~+80℃
- Shelf spacing:70 mm
- Cooling: Air cooling, ambient temperature≤25℃
- Dimension: 605x610x1200mm
- With shelf electric heating function
- Set freeze drying process on touch screen
- Each program can be set 36 segments
- With vacuum pump and connection accessory
- With USB port to output freeze drying data
- With nitrogen inflation valve
- Voltage:220V,50Hz, single phase
- Power: 1700W
