Freeze Drying Technology

What is freeze drying technology

History

The process of freeze-drying was invented in 1906 by Arsèned'Arsonval and his assistant FrédéricBordas at the laboratory of biophysics of Collège de France in Paris. In 1911 Downey Harris and Shackle developed the freeze-drying method of preserving live rabies virus which eventually led to development of the first antirabies vaccine.

Modern freeze-drying was developed during World War II. Blood serum being sent to Europe from the US for medical treatment of the wounded required refrigeration, but because of the lack of simultaneous refrigeration and transport, many serum supplies were spoiling before reaching their intended recipients. The freeze-drying process was developed as a commercial technique that enabled serum to be rendered chemically stable and viable without having to be refrigerated. Shortly thereafter, the freeze-dry process was applied to penicillin and bone, and lyophilization became recognized as an important technique for preservation of biologicals. Since that time, freeze-drying has been used as a preservation or processing technique for a wide variety of products. These applications include the following but are not limited to: the processing of food pharmaceuticals, and diagnostic kits; the restoration of water damaged documents; the preparation of river-bottom sludge for hydrocarbon analysis; the manufacturing of ceramics used in the semiconductor industry; the production of synthetic skin; the manufacture of sulfur-coated vials; and the restoration of historic/reclaimed boat hulls.

Stages

In a typical phase diagram, the boundary between gas and liquid runs from the triple point to the critical point. Freeze-drying (blue arrow) brings the system around the triple point, avoiding the direct liquid-gas transition seen in ordinary drying time (green arrow).

There are four stages in the complete drying process: pretreatment, freezing, primary drying, and secondary drying.

Pretreatment

Pretreatment includes any method of treating the product prior to freezing. This may include concentrating the product, formulation revision (i.e., addition of components to increase stability, preserve appearance, and/or improve processing), decreasing a high-vapor-pressure solvent, or increasing the surface area. In many instances the decision to pretreat a product is based on theoretical knowledge of freeze-drying and its requirements, or is demanded by cycle time or product quality considerations.

Freezing

In a lab, this is often done by placing the material in a freeze-drying flask and rotating the flask in a bath, called a shell freezer, which is cooled by mechanical refrigeration, dry ice in aqueous methanol, or liquid nitrogen. On a larger scale, freezing is usually done using a freeze-drying machine. In this step, it is important to cool the material below its triple point, the lowest temperature at which the solid and liquid phases of the material can coexist. This ensures that sublimation rather than melting will occur in the following steps. Larger crystals are easier to freeze-dry. To produce larger crystals, the product should be frozen slowly or can be cycled up and down in temperature. This cycling process is called annealing. However, in the case of food, or objects with formerly-living cells, large ice crystals will break the cell walls (a problem discovered, and solved, by Clarence Birdseye), resulting in the destruction of more cells, which can result in increasingly poor texture and nutritive content. In this case, the freezing is done rapidly, in order to lower the material to below its eutectic point quickly, thus avoiding the formation of ice crystals. Usually, the freezing temperatures are between −50 °C and −80 °C (-58 °F and -112 °F) . The freezing phase is the most critical in the whole freeze-drying process, because the product can be spoiled if improperly done.

Amorphous materials do not have a eutectic point, but they do have a critical point, below which the product must be maintained to prevent melt-back or collapse during primary and secondary drying.

Primary drying

During the primary drying phase, the pressure is lowered (to the range of a few millibars), and enough heat is supplied to the material for the ice to sublime. The amount of heat necessary can be calculated using the sublimating molecules'latent heat of sublimation. In this initial drying phase, about 95% of the water in the material is sublimated. This phase may be slow (can be several days in the industry), because, if too much heat is added, the material's structure could be altered.

In this phase, pressure is controlled through the application of partial vacuum. The vacuum speeds up the sublimation, making it useful as a deliberate drying process. Furthermore, a cold condenser chamber and/or condenser plates provide a surface(s) for the water vapour to re-solidify on. This condenser plays no role in keeping the material frozen; rather, it prevents water vapor from reaching the vacuum pump, which could degrade the pump's performance. Condenser temperatures are typically below −50 °C (−58 °F).

It is important to note that, in this range of pressure, the heat is brought mainly by conduction or radiation; the convection effect is negligible, due to the low air density.

Secondary drying

The secondary drying phase aims to remove unfrozen water molecules, since the ice was removed in the primary drying phase. This part of the freeze-drying process is governed by the material's adsorption isotherms. In this phase, the temperature is raised higher than in the primary drying phase, and can even be above 0 °C, to break any physico-chemical interactions that have formed between the water molecules and the frozen material. Usually the pressure is also lowered in this stage to encourage desorption (typically in the range of microbars, or fractions of a pascal). However, there are products that benefit from increased pressure as well.

After the freeze-drying process is complete, the vacuum is usually broken with an inert gas, such as nitrogen, before the material is sealed. At the end of the operation, the final residual water content in the product is extremely low, around 1% to 4%.

Properties of freeze-dried products

If a freeze-dried substance is sealed to prevent the reabsorption of moisture, the substance may be stored at room temperature without refrigeration, and be protected against spoilage for many years. Preservation is possible because the greatly reduced water content inhibits the action of microorganisms and enzymes that would normally spoil or degrade the substance.

Freeze-drying also causes less damage to the substance than other dehydration methods using higher temperatures. Freeze-drying does not usually cause shrinkage or toughening of the material being dried. In addition, flavours, smells and nutritional content generally remain unchanged, making the process popular for preserving food. However, water is not the only chemical capable of sublimation, and the loss of other volatile compounds such as acetic acid (vinegar) and alcohols can yield undesirable results.

Freeze-dried products can be rehydrated (reconstituted) much more quickly and easily because the process leaves microscopic pores. The pores are created by the ice crystals that sublimate, leaving gaps or pores in their place. This is especially important when it comes to pharmaceutical uses. Freeze-drying can also be used to increase the shelf life of some pharmaceuticals for many years.

Protectants

Similar to cryoprotectants, some molecules protect freeze-dried material. Known as lyoprotectants, these molecules are typically polyhydroxy compounds such as sugars (mono-, di-, and polysaccharides), polyalcohols, and their derivatives. Trehalose and sucrose are natural lyoprotectants. Trehalose is produced by a variety of plant (for example selaginella and arabidopsis thaliana), fungi, and invertebrate animals that remain in a state of suspended animation during periods of drought (also known as anhydrobiosis).

Applications

Pharmaceutical and biotechnology

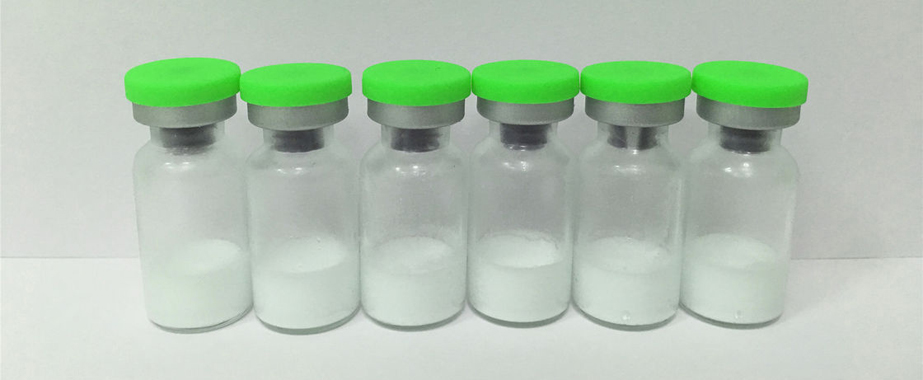

Lyophilized 5% w/v sucrose cake in a pharmaceutical glass vial

Pharmaceutical companies often use freeze-drying to increase the shelf life of the products, such as live virus vaccines, biologics and other injectables. By removing the water from the material and sealing the material in a glass vial, the material can be easily stored, shipped, and later reconstituted to its original form for injection. Another example from the pharmaceutical industry is the use of freeze drying to produce tablets or wafers, the advantage of which is less excipient as well as a rapidly absorbed and easily administered dosage form.

Freeze-dried pharmaceutical products are produced as lyophilized powders for reconstitution in vials and more recently in prefilled syringes for self-administration by a patient.

Examples of lyophilized biological products include many vaccines such as Measles Virus Vaccine Live, Typhoid Vaccine, Meningococcal Polysaccharide Vaccine Groups A and C Combined. Other freeze-dried biological products include AntihemophilicFactor VIII, Interferon alfa, anti-blood clot medicine Streptokinase and Wasp Venom Allergenic Extract.

Many biopharmaceutical products based on therapeutic proteins such as monoclonal antibodies require lyophilization for stability. Examples of lyophilized biopharmaceuticals include blockbuster drugs such as Etanercept (Enbrel by Pfizer), Infliximab (Remicade by Janssen Biotech), Rituximab and Trastuzumab (Herceptin by Genentech).

Freeze-drying is also used in manufacturing of raw materials for pharmaceutical products. Active Pharmaceutical Product Ingredients (APIs) are lyophilized to achieve chemical stability under room temperature storage. Bulk lyophilization of APIs is typically conducted using trays instead of glass vials.

Dry powders of probiotics are often produced by bulk freeze-drying of live microorganisms such as Lactic acid bacteria and Bifidobacteria.

Food and agriculture-based industries

Although freeze-drying is used to preserve food, its earliest use in agriculturally based industries was in processing of crops such as peanuts/groundnuts and tobacco in the early 1970s. Because heat, commonly used in crop and food processing, invariably alters the structure and chemistry of the product, the main objective of freeze-drying is to avoid heat and thus preserve the structural and chemical integrity/composition with little or no alteration. Therefore, freeze-dried crops and foods are closest to the natural composition with respect to structure and chemistry. The process came to wide public attention when it was used to create freeze-dried ice cream, an example of astronaut food. It is also widely used to produce essences or flavourings to add to food.

Because of its light weight per volume of reconstituted food, freeze-dried products are popular and convenient for hikers. More dried food can be carried per the same weight of wet food, and remains in good condition for longer than wet food, which tends to spoil quickly. Hikers reconstitute the food with water available at point of use.

Instant coffee is sometimes freeze-dried, despite the high costs of the freeze-driers used. The coffee is often dried by vaporization in a hot air flow, or by projection onto hot metallic plates. Freeze-dried fruits are used in some breakfast cereal or sold as a snack, and are a popular snack choice, especially among toddlers, preschoolers, hikers and dieters, as well as being used by some pet owners as a treat for petbirds. Most commercial freezing is done either in cold air kept in motion by fans (blast freezing) or by placing the foodstuffs in packages or metal trays on refrigerated surfaces (contact freezing)

Culinary herbs, vegetables (such as vitamin-rich spinach and watercress), the temperature sensitive baker`s yeast suspension and the nutrient-rich pre-boiled rice can also be freeze-dried. During three hours of drying the spinach and watercress has lost over 98% of its water content, followed by the yeast suspension with 96% and the pre-boiled rice by 75%.[13] The air-dried herbs are far more common and less expensive. Freeze dried tofu is a popular foodstuff in Japan ("Koya-dofu" or "shimi-dofu" in Japanese).

Technological industry

In chemical synthesis, products are often freeze-dried to make them more stable, or easier to dissolve in water for subsequent use.

In bioseparations, freeze-drying can be used also as a late-stage purification procedure, because it can effectively remove solvents. Furthermore, it is capable of concentrating substances with low molecular weights that are too small to be removed by a filtration membrane. Freeze-drying is a relatively expensive process. The equipment is about three times as expensive as the equipment used for other separation processes, and the high energy demands lead to high energy costs. Furthermore, freeze-drying also has a long process time, because the addition of too much heat to the material can cause melting or structural deformations. Therefore, freeze-drying is often reserved for materials that are heat-sensitive, such as proteins, enzymes, microorganisms, and blood plasma. The low operating temperature of the process leads to minimal damage of these heat-sensitive products.

In nanotechnology, freeze-drying is used for nanotube purification[14] to avoid aggregation due to capillary forces during regular thermal vaporization drying.

Other uses

Freeze-drying as a recovery method of water-damaged books and documents. While recovery is possible, restoration quality depends on the material of the documents. If a document is made of a variety of materials, which have different absorption properties, expansion will occur at a non-uniform rate, which could lead to deformations. Water can also cause mold to grow or make inks bleed. In these cases, freeze-drying may not be an effective restoration method.

In bacteriology freeze-drying is used to conserve special strains. In high-altitude environments, the low temperatures and pressures can sometimes produce natural mummies by a process of freeze-drying.

Advanced ceramics processes sometimes use freeze-drying to create a formable powder from a sprayed slurry mist. Freeze-drying creates softer particles with a more homogeneous chemical composition than traditional hot spray drying, but it is also more expensive.

Freeze-drying is also used for floral preservation. Wedding bouquet preservation has become very popular with brides who want to preserve their wedding day flowers.

A new form of burial which previously freeze-dries the body with liquid nitrogen has been developed by the Swedish company Promessa Organic AB, which puts it forward as an environmentally friendly alternative to traditional casket and cremation burials.

Equipment

Unloading trays of freeze-dried material from a small cabinet-type freeze-dryer

There are essentially three categories of freeze-dryers: the manifold freeze-dryer, the rotary freeze-dryer and the tray style freeze-dryer. Two components are common to all types of freeze-dryers: a vacuum pump to reduce the ambient gas pressure in a vessel containing the substance to be dried and a condenser to remove the moisture by condensation on a surface cooled to −40 to −80 °C (−40 to −112 °F). The manifold, rotary and tray type freeze-dryers differ in the method by which the dried substance is interfaced with a condenser. In manifold freeze-dryers a short usually circular tube is used to connect multiple containers with the dried product to a condenser. The rotary and tray freeze-dryers have a single large reservoir for the dried substance.

Rotary freeze-dryers are usually used for drying pellets, cubes and other pourable substances. The rotary dryers have a cylindrical reservoir that is rotated during drying to achieve a more uniform drying throughout the substance. Tray style freeze-dryers usually have rectangular reservoir with shelves on which products, such as pharmaceutical solutions and tissue extracts, can be placed in trays, vials and other containers.

Manifold freeze-dryers are usually used in a laboratory setting when drying liquid substances in small containers and when the product will be used in a short period of time. A manifold dryer will dry the product to less than 5% moisture content. Without heat, only primary drying (removal of the unbound water) can be achieved. A heater must be added for secondary drying, which will remove the bound water and will produce a lower moisture content.

Tray style freeze-dryers are typically larger than the manifold dryers and are more sophisticated. Tray style freeze-dryers are used to dry a variety of materials. A tray freeze-dryer is used to produce the driest product for long-term storage. A tray freeze-dryer allows the product to be frozen in place and performs both primary (unbound water removal) and secondary (bound water removal) freeze-drying, thus producing the driest possible end-product. Tray freeze-dryers can dry products in bulk or in vials or other containers. When drying in vials, the freeze-dryer is supplied with a stoppering mechanism that allows a stopper to be pressed into place, sealing the vial before it is exposed to the atmosphere. This is used for long-term storage, such as vaccines.

Improved freeze-drying techniques are being developed to extend the range of products that can be freeze-dried, to improve the quality of the product, and to produce the product faster with less labor.
