Product Description

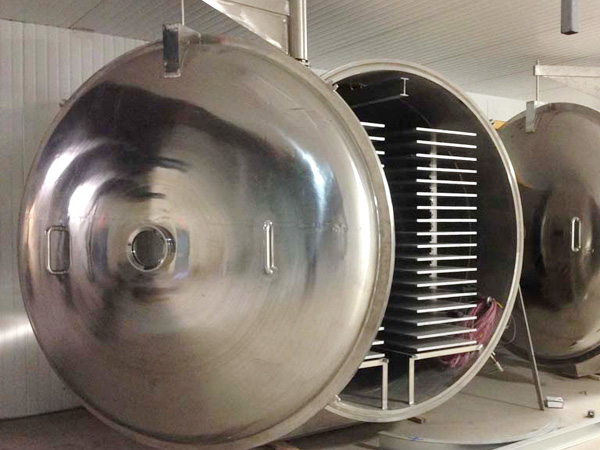

Raspberry Freeze Dryer
Technical Parameters of Raspberry Freeze Dryer :
| Model | EBT10 | EBT20 | EBT30 | EBT50 | EBT100 | EBT200 | EBT300 | EBT500 | EBT1000 |
| Capacity (kg/batch) | 10 | 20 | 30 | 50 | 100 | 200 | 300 | 500 | 1000 |
| Trays area (m2) | 1 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | 100 |
| Chamber size (Φ*L) | 0.7*0.7 | 0.8*0.9 | 0.9*1.0 | 1.0*1.2 | 1.2*1.5 | 1.4*1.9 | 1.5*2.3 | 1.8*2.5 | 2.5*5.5 |
| Plate temperature (°C) | -50-60 | -50-60 | -50-60 | -50-60 | -50-60 | -50-60 | -50-60 | 0-110 | 0-110 |
| Condenser temperature(°C) | -60 | -60 | -60 | -60 | -60 | -60 | -60 | -60 | -60 |
| Vacuum level (Pa) | 3 | 3 | 3 | 3 | 3 | 3 | 5 | 10 | 15 |
| Plates size (cm) | 40*55 | 70*50 | 63*95 | 102*70 | 119*80 | 170*100 | 190×60 | 232*120 | 500*60 |
| Plates layers | 5+1 | 5+1 | 7+1 | 7+1 | 8+1 | 8+1 | 13+1 | 17+1 | 17+1 |
| Plates distance (mm) | 80 | 75 | 75 | 75 | 70 | 70 | 70 | 70 | 70 |
| Cooling water (≤25°C) recyclable | 2t/h | 3t/h | 5t/h | 5t/h | 8t/h | 15t/h | 25t/h | 40t/h | 100t/h |
| Defrost | By water or 60°C hot water | ||||||||
| Use environment | Temperature 5°C~30°C/41°F~86°F, Humidity <75% | ||||||||
| Total power (kw) | 12 | 16 | 18 | 22 | 40 | 60 | 90 | 150 | 230 |
| Power consumption | 8kwh | 10kwh | 11kwh | 14kwh | 24kwh | 36kwh | 54kwh | 90kwh | 138kwh |
| Install area (m2*H) | 8*2.5 | 15*2.5 | 20*2.5 | 25*2.5 | 35*2.5 | 45*2.5 | 50*2.5 | 100*3 | 200*3.5 |
| Weight | 1.8t | 2t | 2.3t | 2.5t | 6.5t | 8.5t | 9t | 10t | 22t |
